Solid Aluminium Panel Facade
ألواح ألمنيوم صلبة للواجهات
A solid aluminium panel façade uses single-skin aluminium sheets folded into panels and fixed to a supporting subframe. With no composite core, these panels offer durability, non-combustibility, and recyclability while providing a clean, modern exterior finish. Saudi Aluminium Works provides solid aluminium cladding solutions for commercial, government, healthcare, and residential projects across Saudi Arabia.
How Solid Panels Are Made
Each aluminium sheet facade panel is produced in our Al Khobar plant in five steps:
- CNC cutting of the sheet to shop-drawing dimensions
- Folding the edges into a folded tray, also called a cassette panel, with return legs for fixing
- Welding or riveting the corners for a rigid, sealed box shape
- Fixing panel stiffeners to the back with studs or structural adhesive, which keeps large panels flat under wind load and thermal movement
- PVDF coating in our in-house finishing line, after the panel is fully formed
what we offer
Curved and Shaped Panels
Curved panels
single and double curvature for rounded corners, columns and drum facades
Faceted and folded shapes
angled panels that create shadow and depth on the elevation
Fins and blades
vertical or horizontal aluminium plate cladding used as architectural features
Perforated variants
the same panel can be perforated for screening
Applications
High-rise commercial towers
Solid aluminum panels give tall buildings a premium, seamless facade that is strong, fully recyclable, and highly resistant to corrosion and weathering, with the precision to achieve crisp, custom architectural lines
Hospitals, clinics & healthcare
Solid aluminum panels offer a smooth, non-porous surface that is easy to clean and resists corrosion, giving healthcare buildings a hygienic, long-lasting facade with minimal maintenance.
Government buildings
Solid aluminum panels give public buildings a dignified, enduring facade with crisp architectural detailing, built to last for decades with minimal upkeep.

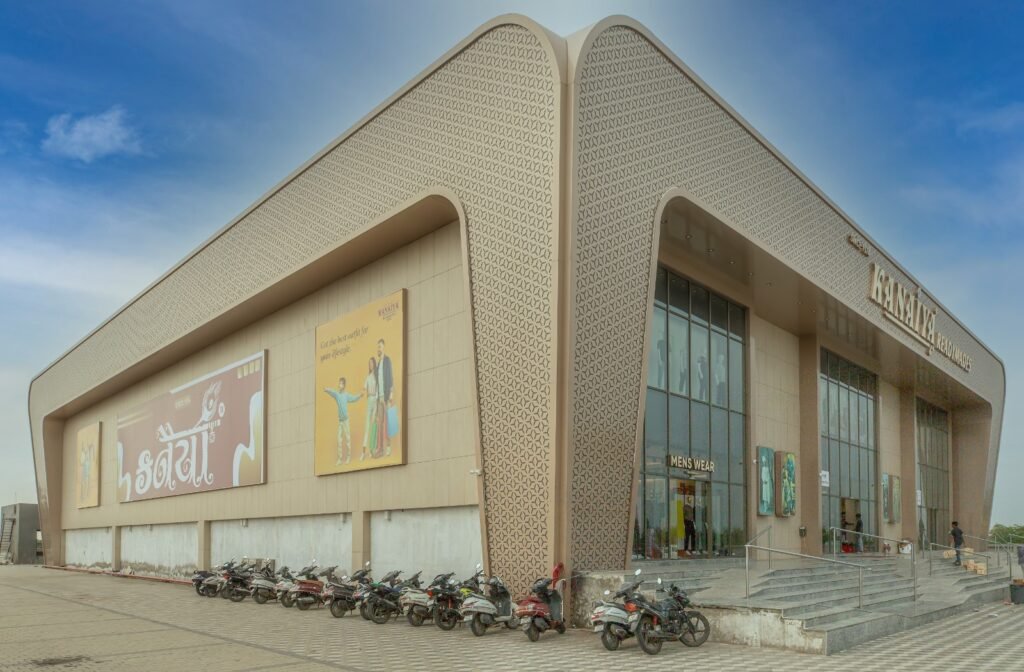

Malls and public-assembly venues
Solid aluminum panels give malls, stadiums, and event venues a bold, eye-catching facade that is tough enough for heavy daily use, with the flexibility to create striking custom shapes and finishes.
PVDF Coating and Weatherability
Every PVDF aluminium panel we produce is finished with Kynar 500 PVDF coating, applied in 2-coat or 3-coat systems:
- AAMA 2605: the highest US performance specification for architectural coatings on aluminium, covering 10 years of outdoor exposure for colour retention, chalking and gloss
- Colour fastness: stable colour under the intense UV of Saudi summers
- Weatherability: resistance to sand abrasion, humidity and coastal salt air in Jeddah and the Eastern Province
- Finishes: any RAL colour, plus metallics, mica, wood-effect and stone-effect
Panel Flatness
We ensure flat, uniform ACP facade panels through appropriate sheet thickness, wind-load-based stiffener spacing, and fixing systems that accommodate thermal expansion. Every panel undergoes visual inspection under angled lighting before dispatch to maintain a smooth, high-quality finish.
Request Your Impact Resistant Facade Panels
Send us your elevations, panel sizes and project location. We’ll recommend thickness, alloy, stiffener layout and finish, with a budget estimate within 7 working days. We supply solid aluminium cladding from Al Khobar to Riyadh, Jeddah, Dammam and giga-projects across the Kingdom.
